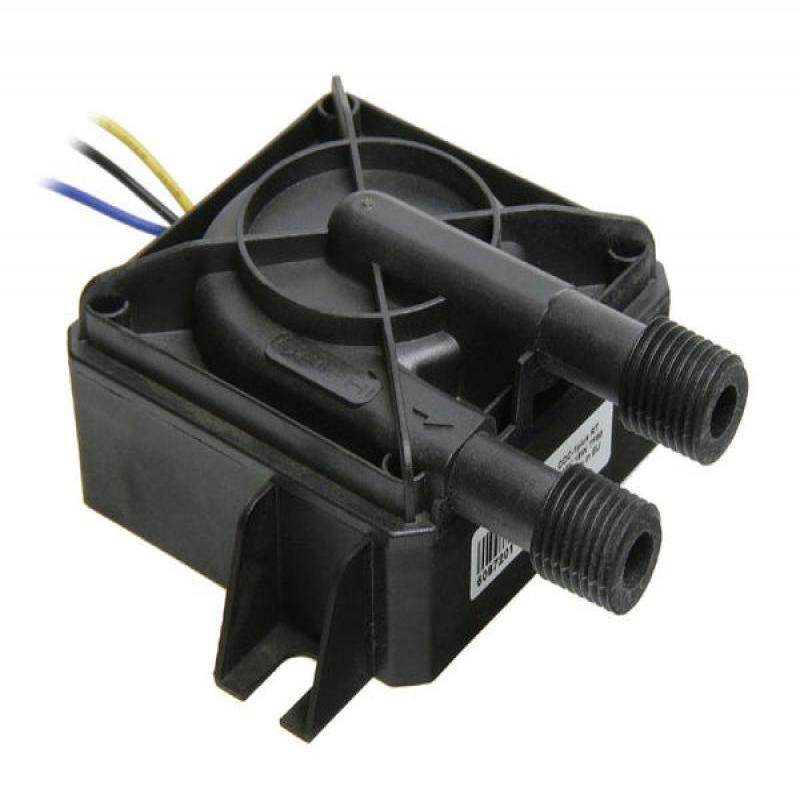

Bomba de Agua - Laing DDC-1RT/Plus - 12V

Laing Original Pump DDC-1RT Plus Pump Product Description
The pump electronically commutated wet rotor design results in only one moving part in the entire pump. A spherically suspended rotor/impeller rests on top of a ceramic ball and is driven magnetically, thereby eliminating the need for a shaft motor connection. The pump lasts longer, consumes less power and offers superior performance characteristics when compared to other pumps in its class.

Technical details:
Dimensions: 62x38x62mm (WxHxD, without connections)
Motor type: Electronically commutated spherical motor
Rated Voltage: 12 V DC voltage
Voltage range 8 to 13.2 V
Minimum Starting Voltage: 9 V
Head at 12V: 4,7 m
Max. Capacity: 500 l / h
Maximum system pressure: 150 kPa / 1.5 bar
Liquids: Water, water /
Max System Temperature: 60 ° C
Connections: 2x G1 / 4 hose connection
