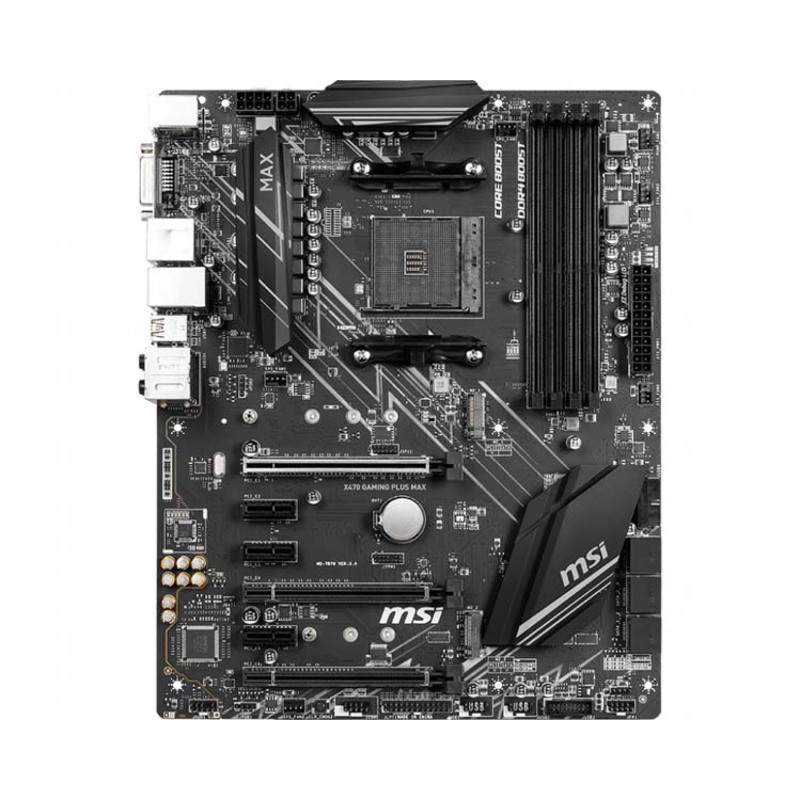

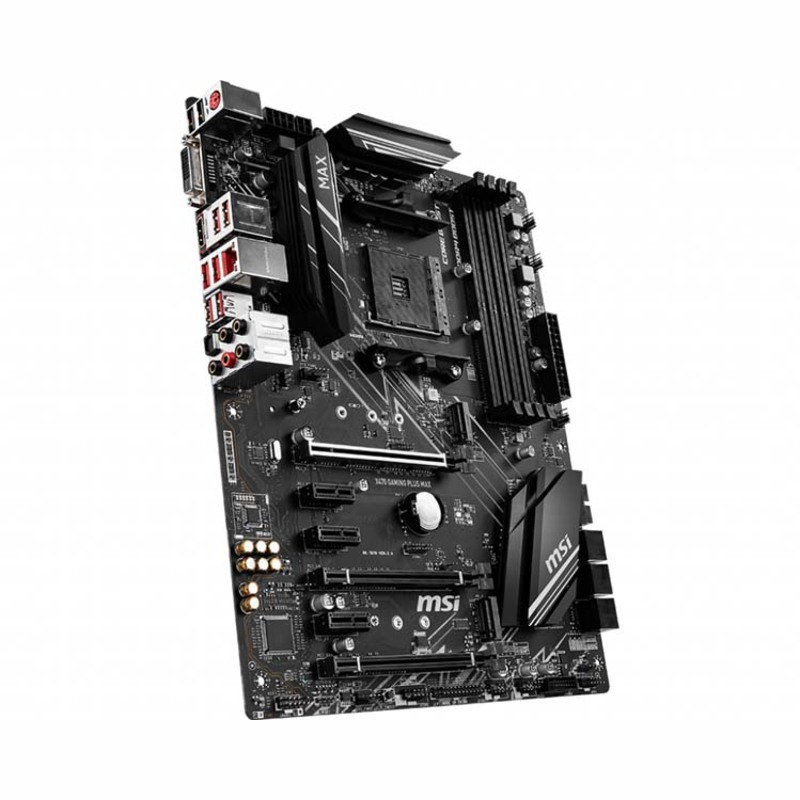

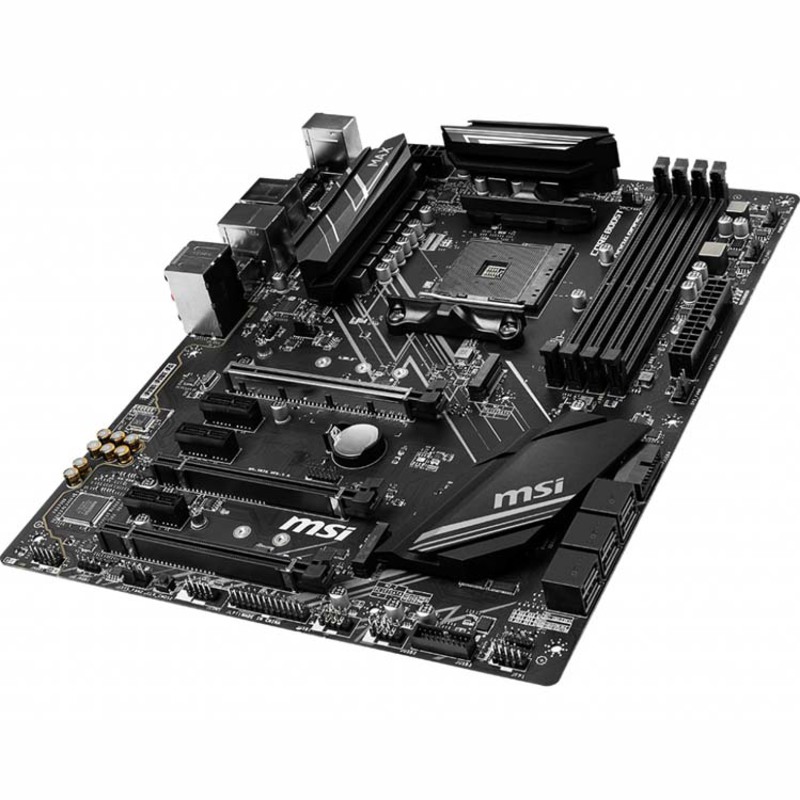

MSI X470 GAMING PLUS MAX Socket AM4 - Placa Base

Procesador

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Chipset

AMD® X470 Chipset

Memoria

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC
  • For AMD Ryzen Gen3 (R5/R7/R9)
    • Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE1
  • For AMD Other CPU
    • Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memoryy
• Supports ECC UDIMM memory

1. Athlon™ with Radeon™ Vega Graphics processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor. Please refer www.msi.com for more information on compatible memory.

Slots

• 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
  • 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode
  • Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
• 3 x PCIe 2.0 x1 slots

1. PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1

1. Only support when using Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2. Maximum shared memory of 2048 MB

*No Display support when using the Processor model with suffix “F”

Multi-GPU

• 1st, 2nd and 3rd Gen AMD Ryzen™ Processors
• Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Almacenamiento

AMD® X470 Chipset

• 6 x SATA 6Gb/s ports
• 2 x M.2 slot (Key M)1
  • M2_1 slot (from AMD® processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors) or PCIe 3.0x2 (Athlon™ with Radeon™ Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

1. SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
2. PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

AMD® X470 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

ASMedia® ASM1143 Chipset

• 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

AMD® X470 Chipset

• 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

• 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin PUMP fan connector (supports up to 2A)
• 4 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 2 x 5050 RGB LED strip 12V connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x Clear CMOS button

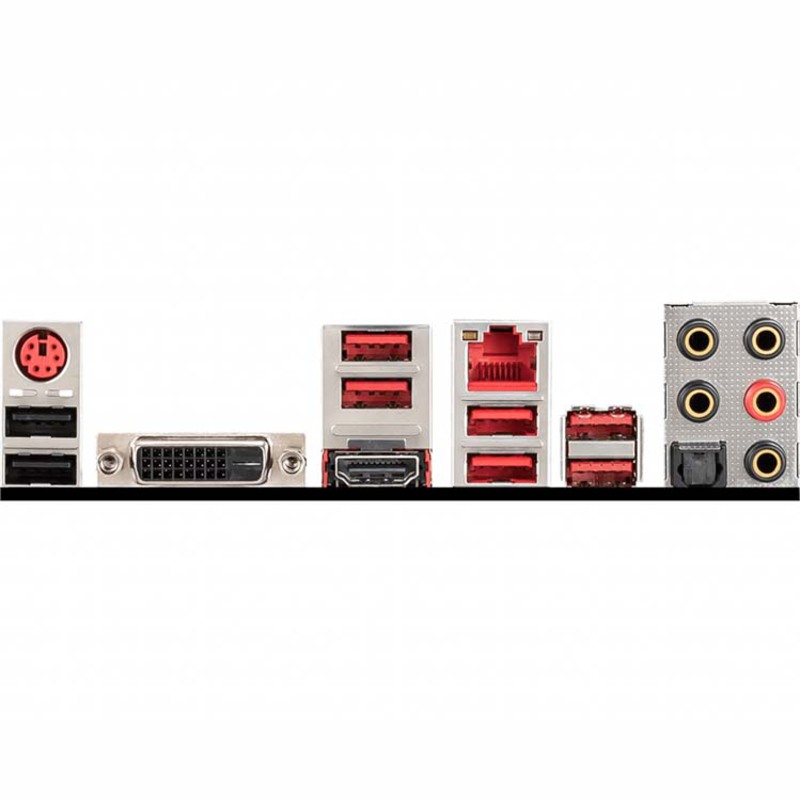

BACK PANEL PORTS

1. PS/2 Combo Port
2. USB 3.2 Gen1
3. LAN Port
4. HD Audio Connectors
5. USB 2.0 Ports
6. DVI-D Port
7. HDMI Port
8. USB 3.2 Gen1
9. USB 3.2 Gen2
10. Optical S/PDIF OUT

Dimensions

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit
